RC2032 'VALVULAS TODAS SOLENOIDE SOLDAR 1-1/8 S/BOBINA 240RA EMERSON'

Detalles:

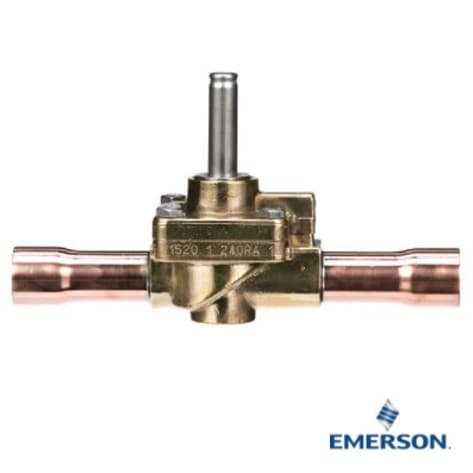

The 240RA is a 2-way, normally closed diaphragm valve used for liquid, suction, and hot gas service. FEATURES 1. Single coil family fits all valve sizes 2. Can be brazed into the line without disassembly 3. PTFE diaphragm for high temperature applications 4. Extended ends for easy installation (standard) 5. Mounting stud models can be field converted to manual stem 6. Field serviceable parts available SPECIFICATIONS Maximum Fluid Temperature. 250 F (121 C) Maximum Working Pressure 500 psig (35 bar) Maximum Operating Pressure Differential 300 psig (21 bar) UL/CUL File Number MP604 Canadian CRN 0C21506.513467890YTN
