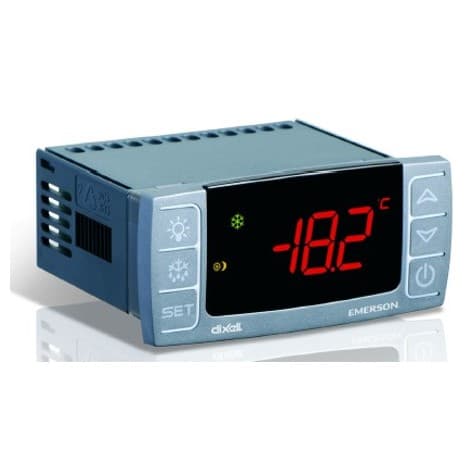

RC8025 ' CONTROLES Y ACCESORIOS TODOS CONTROL DIGITAL GESTION XR75CX DIXCELL 5N6I3 NTC 2R=8+5+16+REP+RTC+'

Detalles:

Dimensions Case: Front: 32 mm x 74 mm Depth: 60 mm Panel Mount: 71 mm x 29 mm panel cut-out Housing Self extinguishing ABS Protection IP 20 Frontal Protection IP65 Connections Screw terminal block 2.5 mm2 wiring Power Supply (depending on the model) 24VAC +/- 10% 230VAC +/- 10%, 50/60Hz 110VAC +/- 10%, 50/60Hz Power Absorption 3VA max Display 3 digits, red LED, 14.2 mm high Inputs Up to four (4) NTC-EU or NTC-US probes Digital: free voltage contact Relay Outputs UL Ratings Evaporator Fan: 120/240 V, 50/60 Hz, 1/4 HP, 30k cycles 125 V, 50/60 Hz, 1/3 HP, 6k cycles 250 V, 50/60 Hz, 1/2 HP, 30k cycles Terminals 4 and 1 Compressor: 120 V, 50/60 Hz, 1/4 HP, 30k cycles 240 V, 50/60 Hz, 1/2 HP, 30k cycles Terminals 3 and 1 AUX/Light: 120/240 V, 50/60 Hz, 5 A General Purpose, 6k cycles Terminals 2 and 1 Defrost N. O.: 120/240 V, 50/60 Hz, 10 A, Resistive, 30k cycles 120/240 V, 50/60 Hz, C300, Pilot Duty, 30k cycles Terminals 7 and 1 Defrost N.C.: 120/240 V, 50/60 Hz, 10 A, Resistive, 30k cycles 120/240 V, 50/60 Hz, C300, Pilot Duty, 30k cycles Terminals 8 and 1 Data Storing On the non-volatile memory (EEPROM) Internal Clock Back-up 24 hours Kind of Action 1B Pollution Degree 2 Software Class A Rated Impulsive Voltage 2500V Overvoltage Category II Temperatures Operating: 0 to 55 C (32 to 131 F) Storage: -30 to 85 C (-22 to 185 F) Table 15-1 - XR75CX Technical Data 20 XR75CX I&O Manual 026-1210 Rev 3 03-FEB-2015 Relative Humidity 20 to 85% (no condensing) Measuring and Regulation Range NTC-EU probe (10k +/- 1%, B=3435): -40 to 110 C (-40 to 230 F) NTC-US probe (%, B=????): -40 to 110 C (-40 to 230 F) Resolution 0.1 C or 1 C or 1 F (selectable) Accuracy (ambient temperature 25 C) +/- 0.7 C +/- 1 digit Table 15-1 - XR75CX Technical Data
